WhereTheWaterFlows.jl

Build Status Coverage DOI

WhereTheWaterFlows routes water on gridded topography (or hydraulic potential) with a D8 algorithm combined with a breach algorithm for depression filling. It supports deterministic flow routing, DEM filling, catchment analysis, coupled feedbacks, subglacial routing physics, and uncertainty propagation.

The package currently has three modules:

  • WhereTheWaterFlows: core deterministic routing and post-processing (WWF)
  • WhereTheWaterFlows.Subglacially: subglacial hydraulic-potential routing (WWFS)
  • WhereTheWaterFlows.Randomly: Monte Carlo wrappers for uncertainty studies (WWFR)

The two submodules can be used independently of each other or combined.

When to use WWF

Hydrological flow routing on DEMs is a fundamental operation in geosciences: it underpins catchment delineation, runoff modelling, subglacial hydrology, and landscape-evolution studies.

WWF is suitable for any domain where DEM-based flow analysis is required. However, the package has been designed with glaciological applications in mind (see References), and thus also has non-traditional features:

  • Shreve potential routing at the glacier bed
  • uncertainty quantification as glacier bed DEMs and Shreve-potential are not well known

Installation

Using Julia v1.12 or later:

using Pkg
Pkg.add("WhereTheWaterFlows")

Plotting functions are provided through a Makie extension. Load any Makie backend alongside the package to enable them:

using WhereTheWaterFlows, GLMakie   # or CairoMakie, WGLMakie, …

Submodules are bundled in the same package and are typically used like so:

using WhereTheWaterFlows
const WWF  = WhereTheWaterFlows
const WWFS = WhereTheWaterFlows.Subglacially
const WWFR = WhereTheWaterFlows.Randomly

Quick start

using WhereTheWaterFlows

# build a small synthetic DEM
x = y = range(-π, π, length=200)
dem = sin.(x) .* cos.(y')

out = waterflows(dem)
maximum(out.area), length(out.sinks)

See the Tutorial for a full walk-through of the core API.

Where to ask questions and how to contribute

Questions and general discussions can be posted on https://github.com/mauro3/WhereTheWaterFlows.jl/discussions.

You are welcome to contribute to WWF by filing issues and making pull-requests; please first have a look at https://github.com/mauro3/WhereTheWaterFlows.jl/blob/master/CONTRIBUTING.md.

Algorithm

D8 algorithm illustration

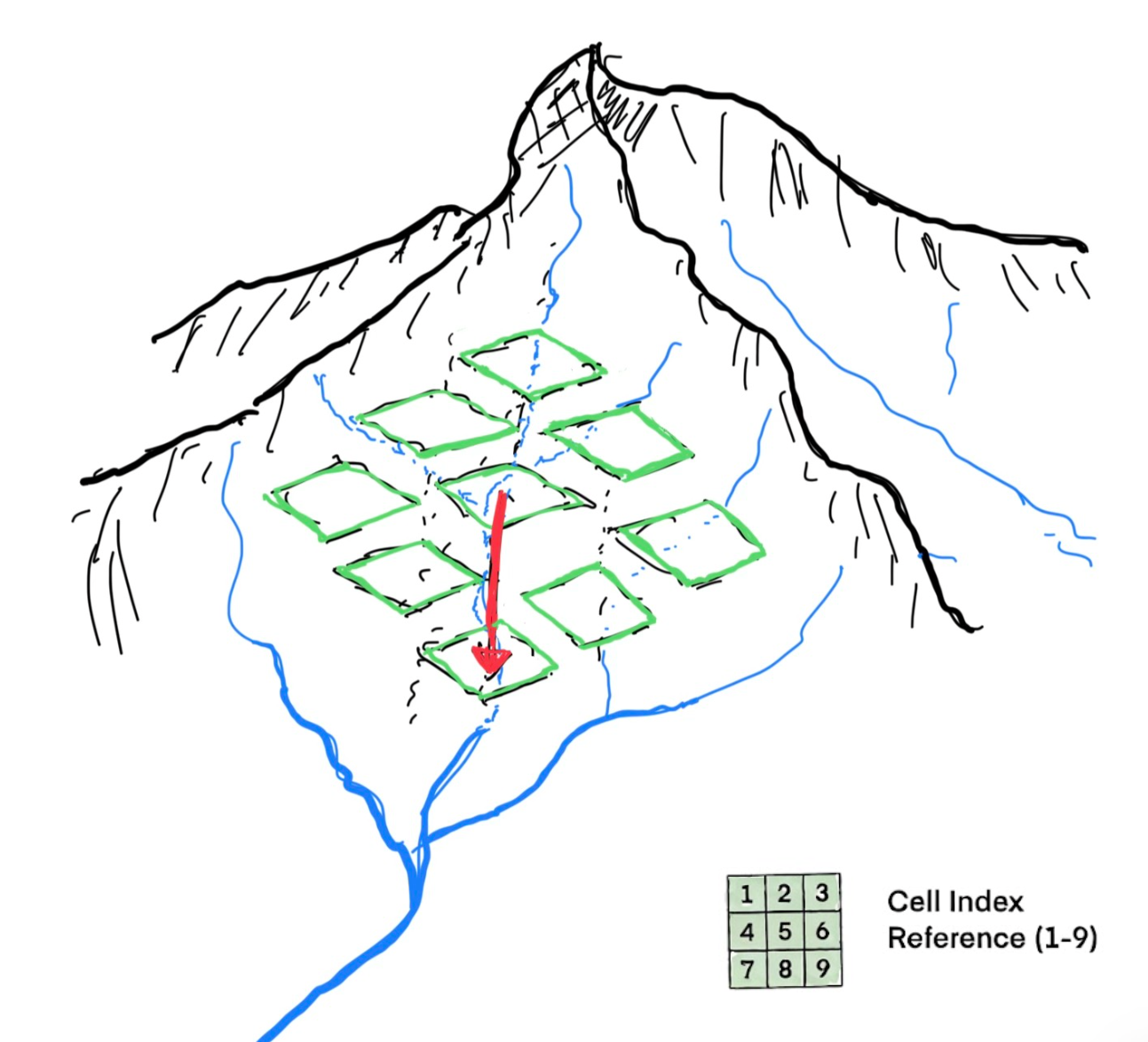

The core routing uses the D8 algorithm: each cell drains to whichever of its eight neighbours has the steepest downward gradient. The illustration above shows cells of a DEM overlain on a "real" topography and the direction of routing.

Local minima (pits) are handled by default via a breach-type algorithm that finds the lowest spillway for each pit and reverses flow along that path, so the input DEM does not need to be pre-filled (or pre-processed in any other way). Both algorithms are described by O’Callaghan & Mark (1984). The flow is accumulated by recursively traversing the drainage tree, the algorithm has O(n) complexity where n is the number of cells (Braun & Willett, 2013). On large DEMs the recursion depth can exceed the default Julia call-stack size and cause a StackOverflowError.
